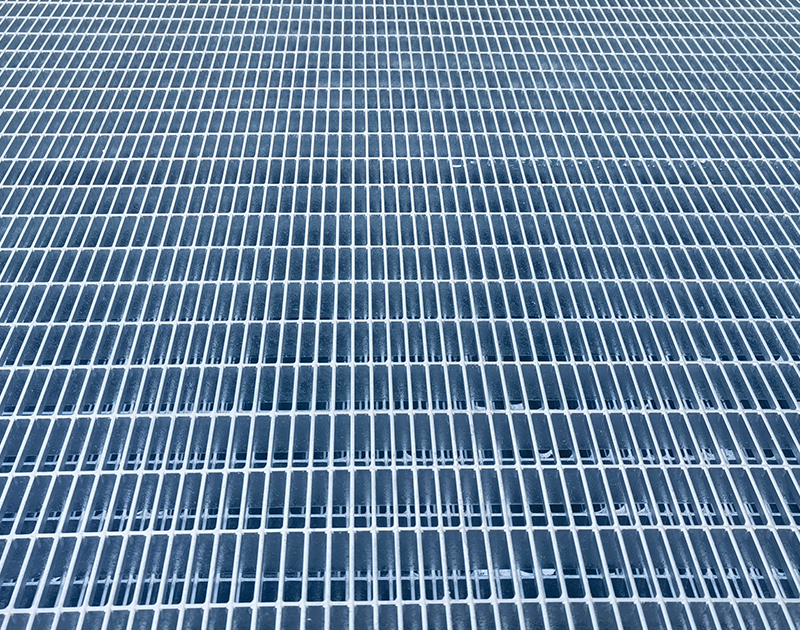

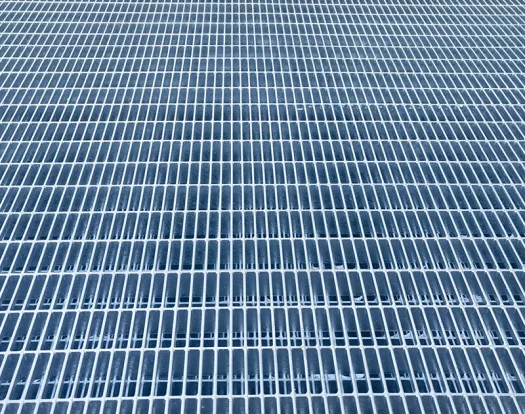

Press-Locked Bar Grating is a steel grating product that tightly locks the cross bars (typically shorter than the bearing bars) and bearing bars together using high-pressure mechanical equipment. Compared to traditional welded steel gratings, press-locked grating offers higher strength, durability, and better aesthetics and stability. The unique manufacturing process ensures uniform hole spacing and a smooth surface, making it widely used in commercial buildings, landscape designs, industrial platforms, and municipal facilities.
Press-Locked Steel Grating is a high-performance solution designed for applications that demand strength, precision, and visual appeal. Manufactured by a professional press locked steel grating factory, this product is created by mechanically locking cross bars and bearing bars together under high pressure, ensuring a secure and stable structure.
Compared with traditional press welded gratings, press locked grating offers a more uniform appearance, tighter connections, and enhanced load-bearing performance. As a reliable choice from any experienced press lock grating manufacturer, it delivers consistent quality, smooth surface finishing, and precise spacing.
Thanks to these advantages, press lock gratings are widely used in industrial platforms, commercial buildings, landscape architecture, and municipal infrastructure projects. Their durability, strength, and modern design make them an ideal alternative to conventional steel grating systems.
1. Material:
Press-locked grating can be made from high-quality low-carbon steel, stainless steel, or aluminum.
2. Surface Treatment:
Press-locked grating can be hot-dip galvanized, electroplated, or spray-coated. For aluminum, anodizing treatment is available.
3. Bearing Bar Types:
Available in flat and serrated types.
4. Dimensions:
We offer press-locked grating in standard sizes as outlined in the attached table, and custom sizes are available based on customer requirements.
5. Load Capacity:
Meets international standards and is suitable for applications with varying load capacities.
|
|
|
|
| Sawtooth Type 1 | Sawtooth Type 2 | Sawtooth Type 3 | Common Type |
| The thickness of the bearing bar ranges from 2 to 3 mm. Common hole spacing | |||||||||
| Bearing bar/mm | Cross bar/mm | ||||||||
| 11,1 | 11,1 | 16,65 | - | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 21 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 22,1 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 44,4 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 55,5 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 11,1 | 16,65 | 21,0 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| The thickness of the bearing bar ranges from 4 to 5 mm. Common hole spacing | |||||||
| Bearing bar/mm | Cross bar/mm | ||||||
| 21 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 25 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 33,3 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 50 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 66,6 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| 99,9 | 16,65 | 22,2 | 33,3 | 44,4 | 49,95 | 66,6 | 99,9 |
| Standard bearing bar profiles | |||||||||||||||||||
| Bearing Bar 2mm | 20/2 | 25/2 | 30/2 | 35/2 | 40/2 | 45/2 | 50/2 | ||||||||||||
| Bearing Bar 3mm | 20/3 | 25/3 | 30/3 | 35/3 | 40/3 | 45/3 | 50/3 | 60/3 | 70/3 | 80/3 | 90/3 | 100/3 | |||||||
| Bearing Bar 4mm | - | 25/4 | 35/4 | 40/4 | 45/4 | 50/4 | 60/4 | 70/4 | 80/4 | 90/4 | 100/4 | ||||||||
| Bearing Bar 5mm | - | 25/5 | 30/5 | 35/5 | 40/5 | 45/5 | 50/5 | 60/5 | 70/5 | 80/5 | 90/5 | 100/5 | 110/5 | 120/5 | 130/5 | 140/5 | 150/5 | 160/5 | 170/5 |
Customized Service
We understand that every project is unique, so we offer comprehensive customization services. Our experienced engineers and designers will work closely with you to ensure the product meets your exact specifications.
1 Dimensions and Shapes:
We can produce steel gratings in any required size and shape.
2. Load Capacity:
Custom load-bearing capacity to match your specific application.
3. Surface Treatment:
Choose from hot-dip galvanizing, spray painting, or other special surface treatments.
4. Special Designs:
We can create custom designs for complex applications or unique project requirements.
Product Features
High Precision
Manufactured using advanced press-locking technology, ensuring precise connection between the cross bars and bearing flat steel, uniform hole spacing, and a compact structure.
Strong Durability
Due to the absence of weld points, press-locked grating distributes stress evenly, reducing deformation caused by welding stress, thus prolonging service life.
Aesthetic and Clean
The press-locking process ensures a smoother surface, clear lines, and a modern appearance, making it suitable for visually demanding environments.
High Load Capacity
Press-locked bar grating offers excellent load-bearing performance and can withstand high-pressure applications, making it ideal for heavy-duty industrial platforms and equipment support.
Flexible Installation
Custom press-locked steel grating can be manufactured to specific sizes, providing easy installation and adaptability to various applications.
Application Fields
1. Commercial Buildings:
Press-locked steel grating is widely used in commercial buildings for air vents, stair treads, and decorative railings. Its robust structure not only ensures safety but also enhances the overall aesthetic of modern interiors. Many architects prefer press lock gratings for their combination of durability and visual appeal.
2. Landscape Design:
In parks, plazas, and bridge landscaping projects, press welded gratings offer both practicality and style. They are ideal for fences, walkways, and drainage covers, providing a safe walking surface while complementing the outdoor design. Pressure locked grating ensures long-lasting performance even in high-traffic areas.
3. Industrial Platforms:

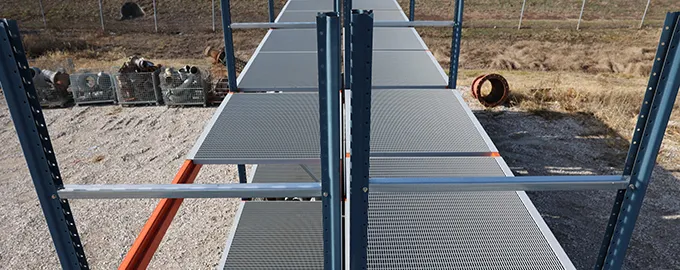

Heavy industries, including petrochemical plants, power stations, and mining sites, rely on press locked steel grating for work platforms and safety walkways. This type of grating provides a secure, non-slip surface that meets strict safety standards while supporting heavy loads.
4. Municipal Facilities:
Press welded gratings and pressure locked grating are commonly installed in municipal infrastructure, such as road drainage covers, pedestrian walkway railings, and maintenance manhole covers. Their durability ensures public safety, and their clean design improves the aesthetic of urban spaces.
In summary, press-locked and press-welded steel gratings play a vital role across commercial, industrial, landscape, and municipal applications. Their combination of strength, safety, and aesthetic appeal makes them a reliable choice for a wide range of projects. Leading brands like Shunbo continue to set the standard, offering high-quality gratings that meet both functional and design requirements for modern infrastructure.
Press-Locked Steel Grating is a type of grating where cross bars are mechanically pressed into bearing bars using high-pressure equipment. This process, commonly used by a professional press locked steel grating factory, ensures strong connections, excellent stability, and a clean, uniform appearance compared to other grating types.
Unlike press welded gratings, which rely on heat and welding, press locked grating is formed through mechanical pressure. This method creates tighter joints, improves structural integrity, and results in a smoother surface. Many buyers prefer press lock gratings from a trusted press lock grating manufacturer for their consistency and long-term durability.
Press-Locked Steel Grating offers several key benefits, including high strength, durability, and a refined appearance. The precise manufacturing process used by a press locked steel grating factory ensures uniform spacing and excellent load distribution. Compared to press welded gratings, it also provides better stability and a more attractive finish, making it suitable for both functional and decorative applications.
Press locked grating is widely used in commercial buildings, industrial platforms, pedestrian walkways, drainage covers, and municipal infrastructure. Thanks to its reliable structure and strength, press lock gratings supplied by an experienced press lock grating manufacturer are often chosen over traditional press welded gratings in demanding environments.
Yes, press lock gratings are designed to handle heavy loads. The mechanical locking process used in press locked steel grating ensures strong bonding between bars, providing excellent load-bearing capacity. Products from a qualified press locked steel grating factory are engineered to meet industrial and commercial strength requirements, making them a dependable choice for high-load applications.
