Jun. 15, 2025
Standard steel grating is a cornerstone of modern industrial, commercial, and infrastructure projects. Prized for its strength, safety, and durability, it is the go-to material for platforms, walkways, stair treads, and drainage covers. Among the various types available, standard steel grating remains the most widely adopted, offering an unmatched combination of versatility, cost-efficiency, and ease of installation.
However, selecting the right solution from a range of sizes and load-bearing capacities can be challenging. A clear understanding of these key parameters is essential for making informed decisions that ensure safety, compliance, and long-term value.
Standard Steel Grating is typically constructed from carbon or stainless steel, featuring a welded structure of load-bearing bars and cross bars. It adheres to established industry norms for bar spacing and dimensions, making it a reliable and adaptable solution for a wide array of applications. You will frequently find it in factories, power plants, wastewater treatment facilities, and shipping yards.
For detailed specifications, visit our Standard Steel Grating product page.
Steel gratings are manufactured in standardized formats to streamline construction and ensure compatibility with structural frames. Some of the most common parameters include:
The bearing bars run in the load-bearing direction and are typically made from flat steel. Common dimensions include:
25 x 3 mm
30 x 3 mm
32 x 5 mm
40 x 5 mm
The larger the bearing bar, the higher the load capacity.
The most common spacing between bearing bars is:
30 mm (standard for industrial applications)
40 mm (lighter loads or pedestrian use)
60 mm (suitable for areas with limited weight exposure)
Cross bar spacing, which provides lateral support, is usually set at:
50 mm
100 mm
These configurations are often referenced in specifications like 30/100 (30mm bearing bar spacing and 100mm cross bar spacing).

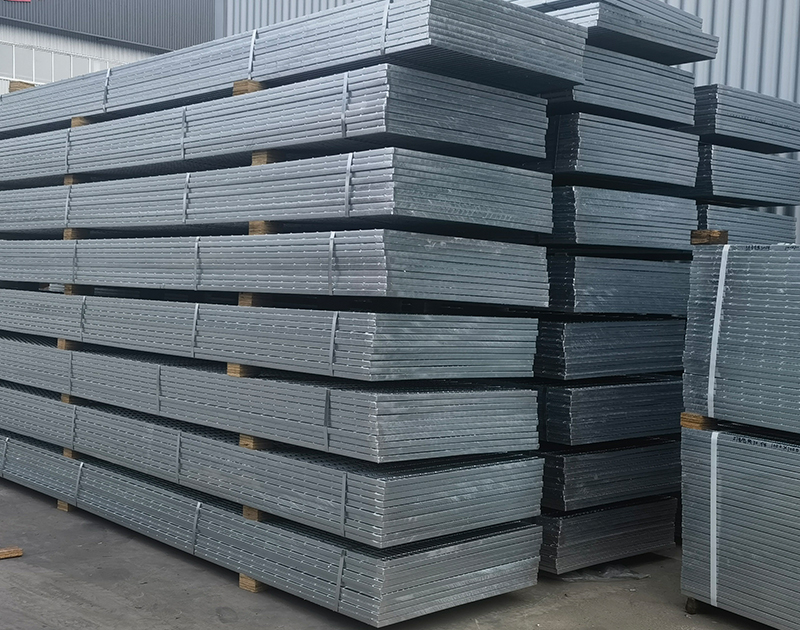

Standard panel sizes for steel grating are:
1000 mm x 6000 mm
1000 mm x 5800 mm
Standard width: 1000 mm (can be cut or fabricated to fit specific frame sizes)
Custom panel dimensions can be manufactured depending on project requirements, though lead time and cost may be affected.
When choosing steel gratings, load-bearing capacity is one of the most critical factors. It directly impacts safety, performance, and long-term reliability.
Concentrated Loads: A point load applied at a single location, such as a person standing or a rolling cart wheel.
Uniform Loads: Evenly distributed weight, like storage pallets or static machinery.
Grating manufacturers often provide load charts that outline the maximum allowable loads based on bar size, spacing, and span. These load classes can include:
Light Duty: Suitable for pedestrian walkways, inspection platforms, and utility covers.
Medium Duty: Designed for light vehicle traffic, industrial catwalks, and equipment platforms.
Heavy Duty: Intended for forklift operation areas, heavy transport zones, and dockyards.
A typical 30 x 3 mm bearing bar with 30/100 spacing may carry approximately 1.5 to 2.5 kN/m² of uniform load with a span of 1 meter, while 40 x 5 mm grating may support over 5 kN/m², depending on structure and material grade.
Selecting the optimal steel grating requires balancing project requirements with material and structural capabilities. Here are five key factors to consider:
Is the grating exposed to foot traffic, vehicular loads, or corrosive chemicals? For corrosive environments, stainless steel or hot-dip galvanized carbon steel is recommended.
Longer spans reduce the number of support structures but require higher-strength gratings. Always consult load tables or engineering support when planning extended spans.
Estimate the maximum expected load, including dynamic and static forces. Overestimating by 20-30% is standard to build a safety margin.
Some grating types come with serrated surfaces to prevent slipping, especially in wet or oily environments. This is critical for workplace safety compliance.
Standard sizes are often more affordable and available off-the-shelf, reducing lead times and fabrication costs.
Standard steel grating remains one of the most practical and dependable materials used across industrial, commercial, and infrastructure environments. Thanks to its exceptional strength-to-weight ratio, corrosion resistance, and adaptability to different loads and environments, it provides a long-lasting solution for platforms, stair treads, trench covers, and industrial walkways.
By carefully evaluating bearing bar size, spacing, span length, and load capacity, project managers and engineers can ensure that the selected steel grating not only meets safety and regulatory standards but also delivers excellent lifecycle value. Choosing the right specification helps prevent structural failure, minimizes maintenance costs, and improves on-site safety performance.
Whether you are designing a new facility or upgrading an existing structure, standard steel grating offers a proven balance of durability, functionality, and cost-efficiency. With proper selection and installation, it delivers decades of reliable service — making it an essential material in modern construction and industrial engineering. If you are looking for reliable quality and professional technical support, Shunbo provides standard steel grating solutions designed to meet demanding industrial needs and long-term performance expectations.
Standard steel grating is widely used for industrial walkways, platforms, stair treads, drainage covers, catwalks, and trench grates. Its strong load-bearing performance and slip-resistant surface make it ideal for factories, power plants, wastewater facilities, ports, and construction sites. Many engineers choose standard steel grating because it provides both safety and durability in demanding environments.
Common steel grating sizes include bearing bar dimensions such as 25×3 mm, 30×3 mm, 32×5 mm, and 40×5 mm, with standard bar spacing of 30 mm or 40 mm. Typical panel sizes include 1000 mm × 6000 mm and 1000 mm × 5800 mm. These standardized formats make installation easier and ensure compatibility with structural frames.
To choose the right steel grating load capacity, you should first determine the expected load — whether it’s pedestrian, equipment, light vehicle, or heavy industrial traffic. Factors such as bearing bar thickness, spacing, material type, and span length directly affect performance. When in doubt, always consult manufacturer load charts or professional engineering guidance to ensure safety and compliance.
Yes, standard steel grating is commonly used outdoors. Most products are hot-dip galvanized to resist corrosion and withstand harsh weather conditions. For highly corrosive or marine environments, stainless steel grating is often recommended to provide enhanced durability and longer service life.
Absolutely. While many projects use standard steel grating sizes, custom fabrication is available for unique layouts, cutting, shaping, stair treads, frames, and load-specific requirements. Custom steel grating ensures a perfect fit for applications such as industrial platforms, mezzanines, pits, and drainage channels, although lead time and cost may vary depending on complexity.
