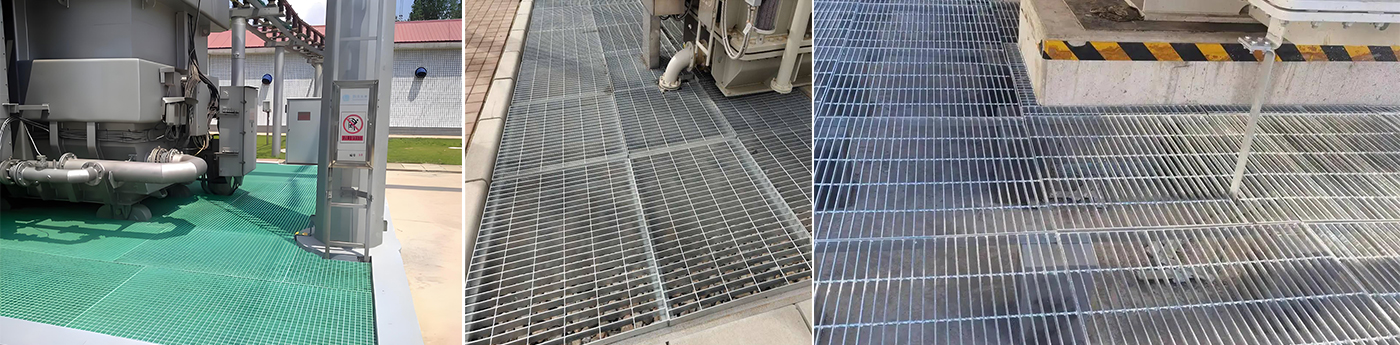

Shunbo Wire Mesh provided custom steel grating walkways for an international power company’s substation in Asia. The substation environment is dense with equipment and has limited space, combined with humidity and oil contamination. The walkways needed to be safe, sturdy, and convenient for personnel inspections while allowing efficient installation.
1. Anti-Static Design
To address static electricity risks during transformer maintenance, bolts were welded inside each grating panel, and all panels were interconnected with grounding wires to effectively prevent static accumulation.
2.Slip-Resistant Optimization
To combat potential slipping from oil contamination, panels were customized with serrated surfaces, significantly improving grip and ensuring personnel safety.
3.Aesthetics & Uniformity
To make the walkways visually neat, the engineering team aligned all flat bars in the same direction and designed a support structure so that each panel remained level and straight after installation.
4.Precision Fit
Each panel was carefully measured and adjusted to ensure precise gaps between panels, allowing smooth on-site installation without cutting or modification.
5.Inspection Convenience
Optimized layout ensures personnel can move freely along the walkways, making routine inspections easier and safer.
High-Strength Hot-Dip Galvanized Carbon Steel: Provides load-bearing capacity and corrosion resistance suitable for the humid, chemically aggressive substation environment.
Long-Term Stability: Panels maintain structural integrity without loosening, deformation, or corrosion over long-term use.
Safe & Reliable: Anti-static grounding + serrated slip-resistant surface
Efficient Construction: Large-scale custom panels delivered and installed quickly
Neat & Aesthetic: Aligned flat bars and optimized support structure
Inspection-Friendly: Smooth, unobstructed walkway
Long-Term Durable: High-strength galvanized steel, corrosion-resistant and sturdy
From design to installation, every step closely followed the client’s requirements. Anti-static, slip-resistant, aesthetic, and efficient design considerations were fully implemented. The walkways were installed smoothly and function reliably, making inspection work much easier and safer.
