Metal grating is a versatile and durable product widely used in industrial, commercial, and infrastructure projects. From factory platforms and stair treads to drainage covers and safety walkways, metal grating provides strength, ventilation, drainage, and slip resistance in demanding environments.
In modern construction and manufacturing, the demand for reliable and cost-effective steel grating systems continues to grow. Engineers, contractors, and project managers often search for the right type of metal grating panels that meet load-bearing requirements while complying with international standards.
This guide explores the main types of metal grating, the materials used, manufacturing methods, international standards, and common applications. Whether you are selecting industrial metal grating for a plant platform or looking for heavy-duty steel grating for infrastructure, this article will help you make informed decisions.
Metal grating is an open-grid assembly of metal bars, typically made from steel, aluminum, or stainless steel. It consists of bearing bars and cross bars that are joined together through welding, press-locking, or swaging. The result is a strong, load-bearing structure with open spaces that allow light, air, water, and debris to pass through.
Unlike solid metal plates, metal grating offers:
High strength-to-weight ratio
Excellent drainage and ventilation
Slip resistance
Easy installation and maintenance
Long service life
These characteristics make metal grating ideal for industrial flooring, trench covers, catwalks, mezzanines, and safety platforms.
There are several types of metal grating available on the market. Each type serves different structural and environmental requirements.

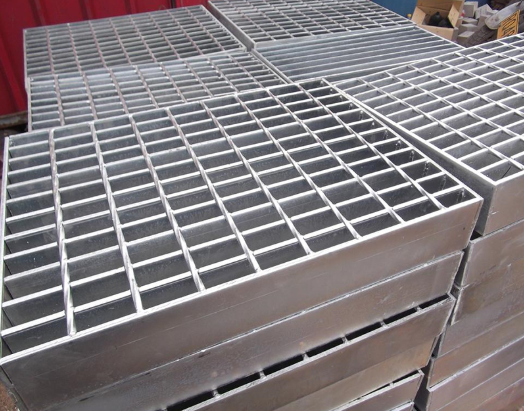

Welded steel grating is the most commonly used type. It is manufactured by electrically welding cross bars to bearing bars under high pressure and temperature.
Key features:
Strong and durable
Cost-effective
Suitable for heavy loads
Available in galvanized, painted, or untreated finishes
Welded steel grating is widely used in industrial flooring, walkways, and trench covers. It is often preferred in factories, power plants, and oil & gas facilities.
Press-locked grating is produced by mechanically locking cross bars into notched bearing bars under high pressure. This process creates a clean and attractive appearance.
Advantages:
Smooth surface
Precise bar alignment
Architectural appeal
Good load capacity
Press-locked metal grating is commonly used in commercial buildings, shopping malls, and decorative facades, where aesthetics matter alongside strength.
Swage-locked grating is mainly made from aluminum. Cross rods are inserted into pre-drilled bearing bars and permanently swaged to create a rigid structure.
Benefits:
Lightweight
Corrosion resistant
Easy to install
Ideal for marine environments
This type of aluminum grating is popular for offshore platforms, wastewater treatment plants, and coastal infrastructure.
Heavy-duty steel grating is designed for extreme loads, such as forklift traffic or heavy equipment movement.
Applications include:
Airports
Highways
Dockyards
Industrial plants
The bearing bars in heavy-duty metal grating are thicker and deeper, providing superior strength and load-bearing capacity.
Stainless steel grating offers excellent corrosion resistance and hygienic properties.
It is widely used in:
Food processing facilities
Pharmaceutical plants
Chemical factories
Water treatment systems
Although more expensive than carbon steel grating, stainless steel grating delivers long-term performance in aggressive environments.
Choosing the right material is critical when selecting metal grating. The most common materials include:
Carbon steel is strong, economical, and widely available. It is often hot-dip galvanized to prevent corrosion. Galvanized steel grating is suitable for outdoor and industrial environments.
Aluminum grating is lightweight and naturally corrosion resistant. It is ideal for areas where weight reduction is important.
Stainless steel provides superior corrosion resistance and hygiene. It performs well in chemical and marine applications.
To ensure safety and performance, metal grating must meet recognized standards. These standards define load capacity, material quality, dimensions, and testing requirements.
ASTM A123 – Zinc (Hot-Dip Galvanized) Coatings
ASTM A36 – Carbon Structural Steel
ASTM A240 – Stainless Steel Plate, Sheet, and Strip
ISO 1461 – Hot-dip galvanized coatings
EN 10025 – Structural steel products
Compliance with these standards ensures that steel grating panels meet required strength and corrosion resistance levels.
When sourcing industrial metal grating, it is essential to verify that the manufacturer follows relevant international standards and provides load tables and technical data.
Surface treatment enhances durability and performance.
Hot-dip galvanized steel grating is coated with a layer of zinc to protect against rust. This is the most common treatment for outdoor applications.
Powder coating adds a colored protective layer. It improves appearance and offers moderate corrosion resistance.
Painting is a basic protective method, usually applied for indoor environments.
Metal grating is used across multiple industries due to its strength and versatility.

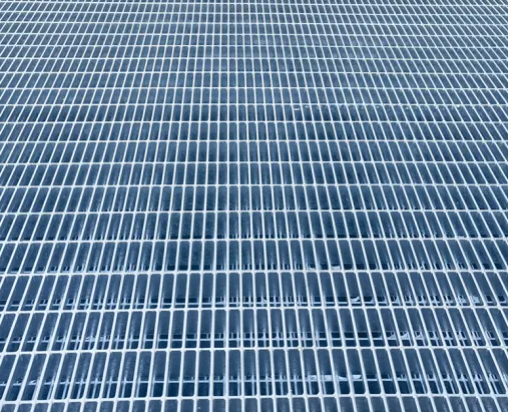

Steel grating flooring provides safe and durable working surfaces in factories and warehouses. Its open-grid design prevents water accumulation and reduces slipping hazards.
Industrial metal grating is commonly installed on elevated walkways, ensuring safety while allowing light and air circulation.
Grating stair treads offer high traction and durability. They are often used in industrial plants and public facilities.
Metal grating panels are widely used as trench covers and drainage grates in roads, parking lots, and airports. They allow water flow while supporting heavy loads.
Heavy-duty steel grating withstands harsh environments, high temperatures, and heavy equipment loads.
Modern architects use aluminum and stainless steel grating for facades, sunshades, and decorative elements.
Metal grating offers multiple benefits compared to solid flooring systems:
High load-bearing capacity
Excellent ventilation and drainage
Slip-resistant surface
Easy installation and replacement
Cost-effective over long service life
Recyclable and environmentally friendly
With proper design and material selection, metal grating can last for decades with minimal maintenance.
Selecting the correct metal grating depends on several factors:
Determine the expected load, including foot traffic, vehicles, or heavy machinery.
Consider corrosion exposure, temperature, and chemical contact.
Choose between carbon steel, aluminum, or stainless steel.
Hot-dip galvanizing is recommended for outdoor installations.
Ensure the product meets ASTM, ISO, or EN standards.
Professional manufacturers such as Shunbo provide customized metal grating solutions based on project requirements, offering detailed load tables and technical support.
Use proper clamps and fasteners
Ensure correct panel alignment
Follow engineering load specifications
Allow for thermal expansion
Inspect periodically for corrosion or damage
Clean debris to maintain drainage performance
Recoat damaged galvanized surfaces if necessary
Proper installation and routine inspection significantly extend the service life of steel grating systems.
As industries modernize, the demand for industrial metal grating, heavy-duty steel grating, and galvanized steel grating panels continues to increase. Infrastructure expansion, urbanization, and safety regulations are key drivers of market growth.
Manufacturers like Shunbo focus on improving welding technology, corrosion protection, and customized fabrication to meet diverse global requirements.
Metal grating plays a crucial role in modern industrial and commercial construction. Its strength, durability, ventilation properties, and cost-effectiveness make it an essential component in flooring, walkways, drainage systems, and structural platforms.
By understanding the different types of metal grating—such as welded steel grating, press-locked grating, heavy-duty steel grating, aluminum grating, and stainless steel grating—you can select the most suitable solution for your project.
Compliance with international standards, proper surface treatment, and correct installation are key to achieving long-term performance. As infrastructure development continues worldwide, high-quality metal grating will remain a reliable and efficient structural solution for decades to come.
