Feb. 28, 2026

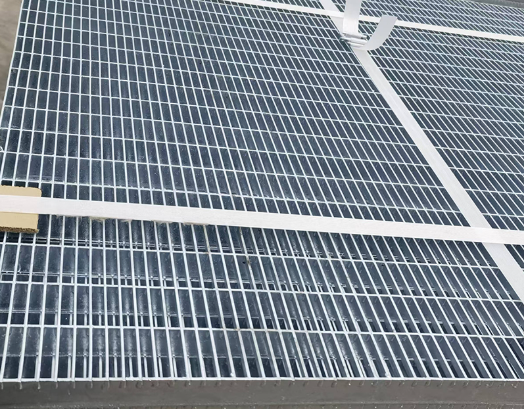

Press-locked steel grating is one of the most widely used types of metal grating in modern industrial and architectural projects. Known for its clean appearance, strong load-bearing capacity, and precise construction, press-locked steel grating plays an essential role in platforms, walkways, stair treads, trench covers, and facade systems.
As industries continue to demand high-performance flooring and drainage solutions, press-locked steel grating has become a preferred option due to its durability, safety features, and flexibility in design. Whether used in factories, power plants, commercial buildings, or municipal projects, this type of steel grating delivers reliable performance in both heavy-duty and decorative applications.
In this comprehensive guide, we will explore what press-locked steel grating is, how it is manufactured, its advantages, specifications, applications, and how it compares to other types of steel grating. If you are considering press-locked steel grating for your next project, this article will help you make an informed decision.

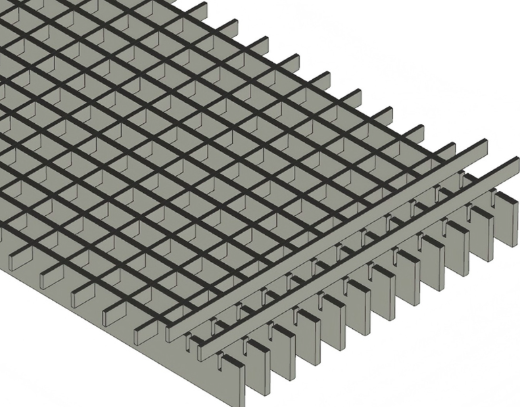

Press-locked steel grating is a type of steel grating manufactured by mechanically interlocking bearing bars and cross bars using high-pressure pressing technology. Unlike welded steel grating, which relies on welding at intersections, press-locked steel grating forms a secure and stable grid structure by pressing cross bars into pre-slotted bearing bars.
This mechanical locking method ensures:
Uniform load distribution
Strong structural integrity
A smooth and refined appearance
High dimensional accuracy
The result is a rigid, flat, and aesthetically appealing steel grating panel that performs well in both industrial and architectural environments.
Understanding the manufacturing process helps explain why press-locked steel grating offers excellent performance.
High-quality carbon steel, stainless steel, or aluminum is selected based on the application environment. Carbon steel is commonly used for industrial platforms, while stainless steel press-locked steel grating is ideal for corrosive environments.
The bearing bars are precisely notched at regular intervals. These slots are carefully designed to ensure accurate alignment and tight interlocking with cross bars.
Cross bars are inserted into the notches of the bearing bars. A high-pressure hydraulic press locks them together mechanically. This creates a flush surface where bearing bars and cross bars are aligned at the same height.
To enhance corrosion resistance, press-locked steel grating can undergo:
Hot-dip galvanizing
Powder coating
Painting
Stainless steel polishing
Galvanized press-locked steel grating is especially popular in outdoor and heavy-duty applications.
Press-locked steel grating stands out because of its unique structural and performance characteristics.
The interlocking structure ensures excellent load-bearing capacity. It can withstand heavy foot traffic, machinery, and equipment loads.
Unlike welded grating, press-locked steel grating offers a smooth and uniform grid pattern. This makes it suitable for architectural facades, sunshades, and decorative applications.
The grid structure allows for:
Effective drainage
Anti-slip performance
Improved ventilation
Reduced accumulation of debris
Because it is manufactured with high-precision machinery, press-locked steel grating panels maintain tight tolerances and consistent spacing.
Press-locked steel grating is available in various bar sizes, spacing configurations, and materials, allowing customization for specific project requirements.
Press-locked steel grating is versatile and suitable for a wide range of industries.
In factories and power plants, press-locked steel grating is commonly used for:
Maintenance platforms
Equipment walkways
Catwalk systems
Its strength and anti-slip properties make it ideal for industrial flooring.
Press-locked steel grating stair treads provide durability and enhanced safety. Serrated surfaces can further improve slip resistance.
The open grid structure allows water and debris to pass through efficiently. Press-locked steel grating is frequently used in municipal drainage systems.
Architects prefer press-locked steel grating for:
Building facades
Sunshade panels
Ceiling systems
Balustrades
Its clean appearance and customizable design offer both functionality and aesthetics.
With proper galvanizing or stainless steel materials, press-locked steel grating performs well in marine environments.
A common question is how press-locked steel grating compares to welded steel grating.
| Feature | Press-Locked Steel Grating | Welded Steel Grating |
|---|---|---|
| Manufacturing | Mechanical interlocking | Welding at intersections |
| Appearance | Smooth and refined | Industrial look |
| Strength | High structural stability | Strong but weld-dependent |
| Customization | Highly customizable | Standard configurations |
| Applications | Architectural & industrial | Mainly industrial |
Press-locked steel grating is often chosen when aesthetics and precision are important. Welded grating may be preferred for heavy-duty industrial environments where appearance is less critical.
Cost-effective and strong. Usually galvanized for corrosion resistance.
Ideal for corrosive environments such as chemical plants and food processing facilities.
Lightweight and corrosion-resistant. Suitable for architectural use.
Each material option allows press-locked steel grating to meet different environmental and structural requirements.
Surface treatment enhances durability and extends service life.
Provides excellent corrosion resistance. Ideal for outdoor installations.
Used for indoor or decorative purposes.
Offers additional protection and color options.
Choosing press-locked steel grating offers several advantages:
Long service life
Low maintenance requirements
Excellent load-bearing capacity
Attractive design
Customizable specifications
Enhanced safety and drainage
Environmentally friendly and recyclable
Manufacturers like Shunbo focus on precision production and quality control to ensure consistent performance and durability across different applications. Selecting a reliable supplier is critical to maximizing the benefits of press-locked steel grating.
When selecting press-locked steel grating, consider the following factors:
Determine the expected load capacity. Heavy-duty industrial use requires thicker bearing bars.
Smaller spacing provides greater strength and safety, especially for pedestrian areas.
Choose galvanized or stainless steel press-locked steel grating for corrosive conditions.
Serrated bearing bars are recommended for areas exposed to water or oil.
Cut-to-size panels reduce installation time and material waste.
Experienced suppliers, including Shunbo, can provide technical guidance and customized production solutions for different industries.
Ensure proper support structure
Use appropriate fastening clips
Align panels accurately
Follow safety regulations
Press-locked steel grating requires minimal maintenance. Periodic inspection and cleaning help maintain performance and appearance.
Galvanized press-locked steel grating typically lasts decades in outdoor environments with minimal corrosion issues.
Press-locked steel grating is environmentally friendly because:
Steel is 100% recyclable
Long service life reduces replacement frequency
Open grid design improves ventilation and lighting efficiency
Sustainable construction projects often incorporate press-locked steel grating for these reasons.
Press-locked steel grating is a highly versatile, durable, and aesthetically pleasing metal grating solution widely used in industrial and architectural applications. Its mechanical interlocking structure ensures strength, precision, and long-term reliability.
From industrial platforms and stair treads to drainage systems and building facades, press-locked steel grating offers a balanced combination of performance and design flexibility. With multiple material options, customizable specifications, and various surface treatments, it meets the needs of diverse projects.
If you are planning a construction or industrial project, press-locked steel grating provides a cost-effective, safe, and sustainable solution that delivers long-term value. By choosing the right specifications and working with experienced manufacturers, you can ensure optimal performance and durability for years to come.
